Gambit

Chess Set

2024 5 weeks

Transforming the traditional chess set into a functional piece of art

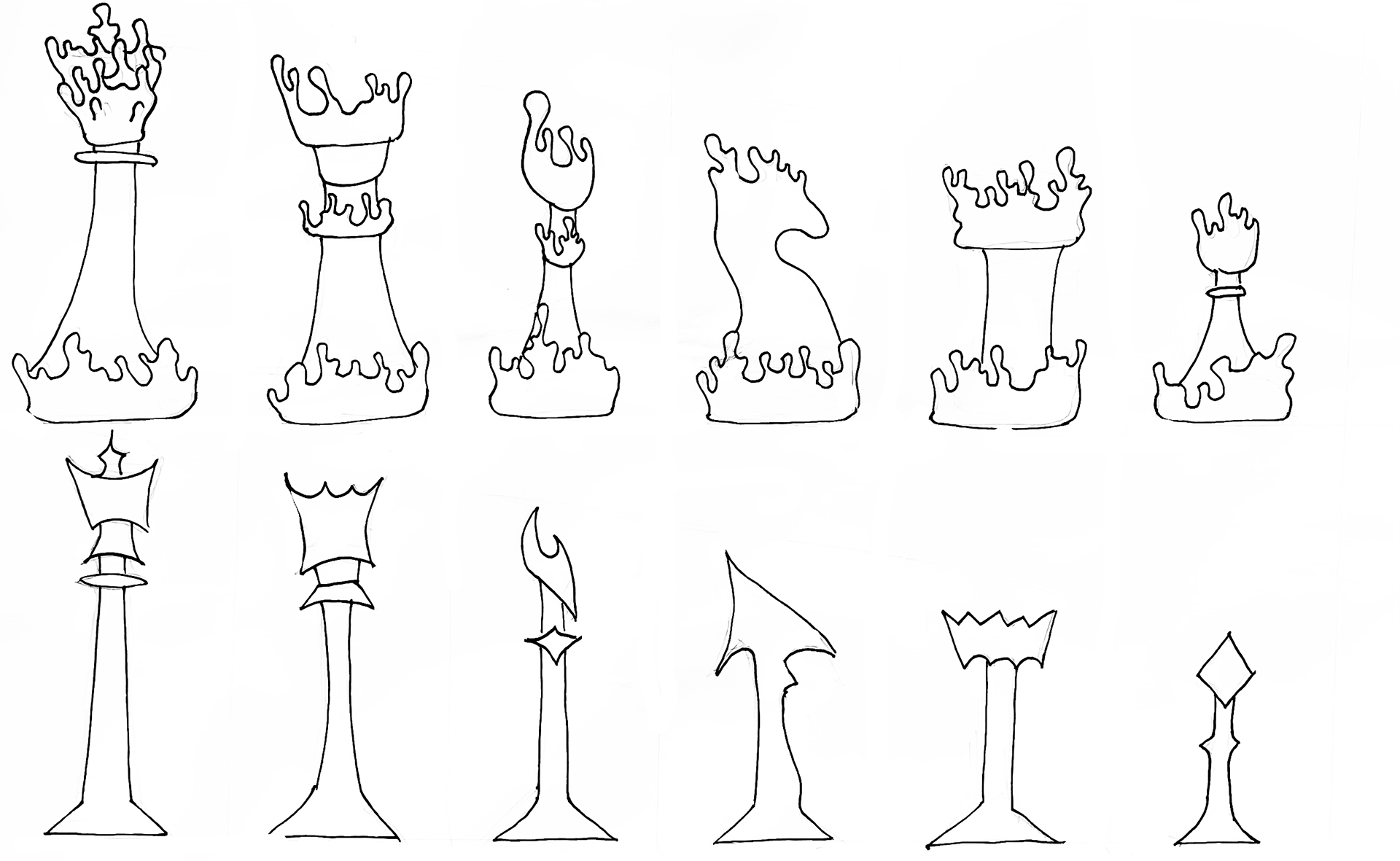

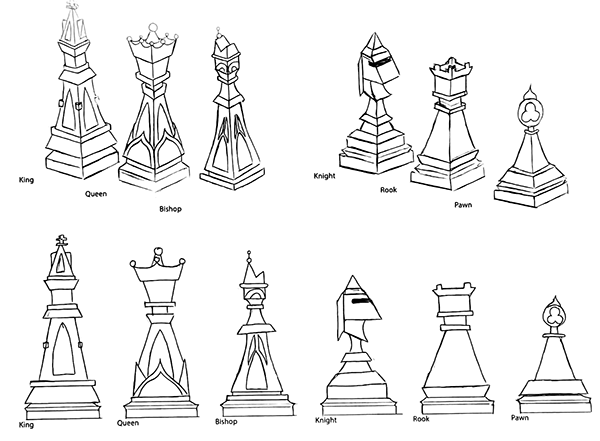

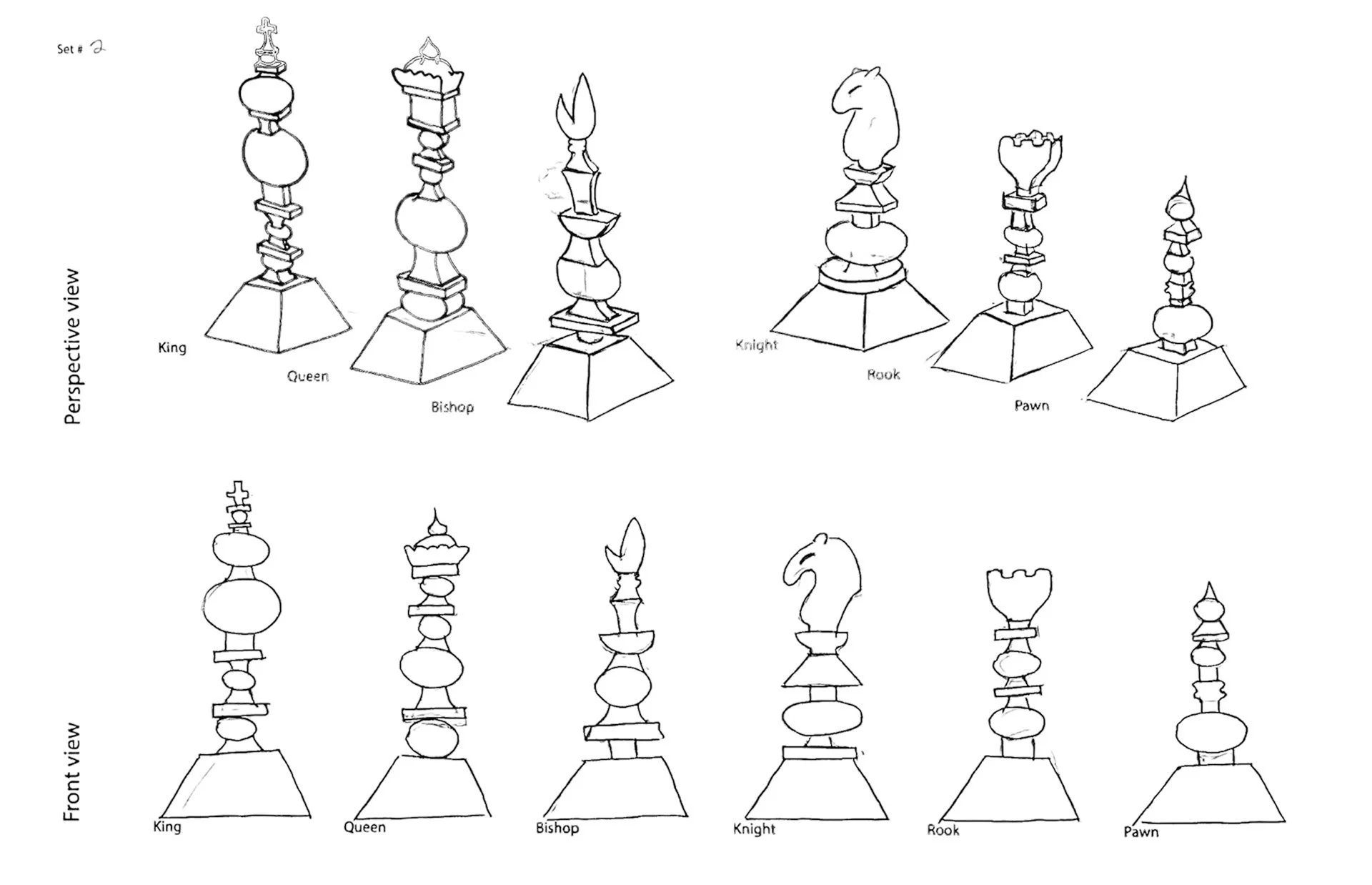

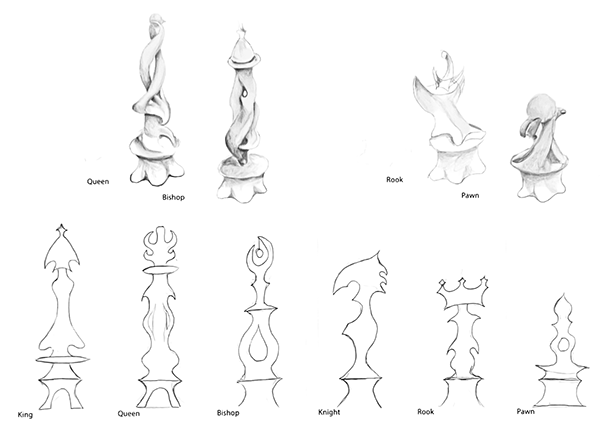

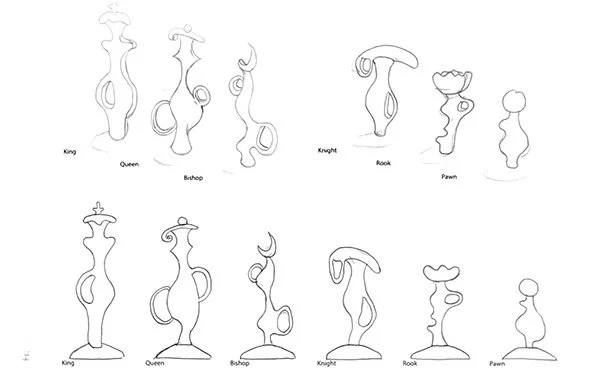

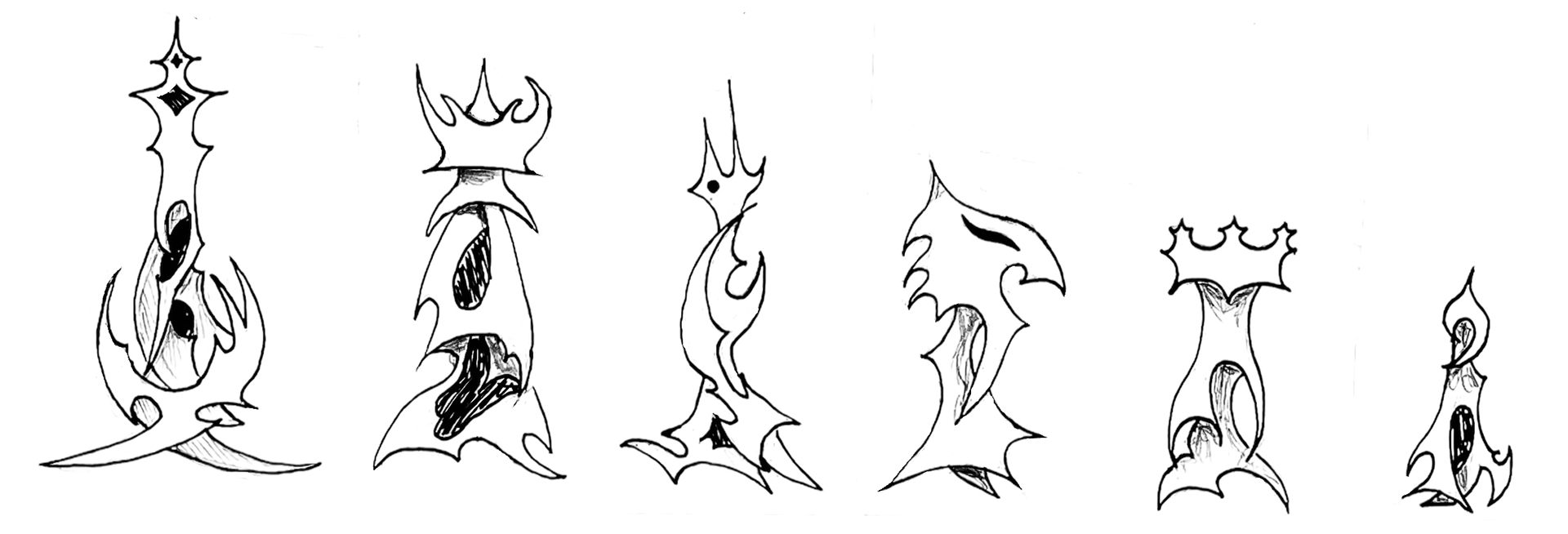

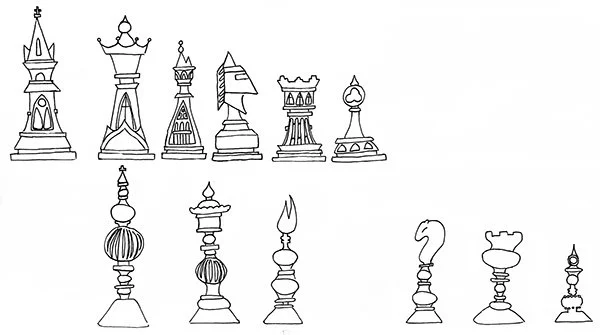

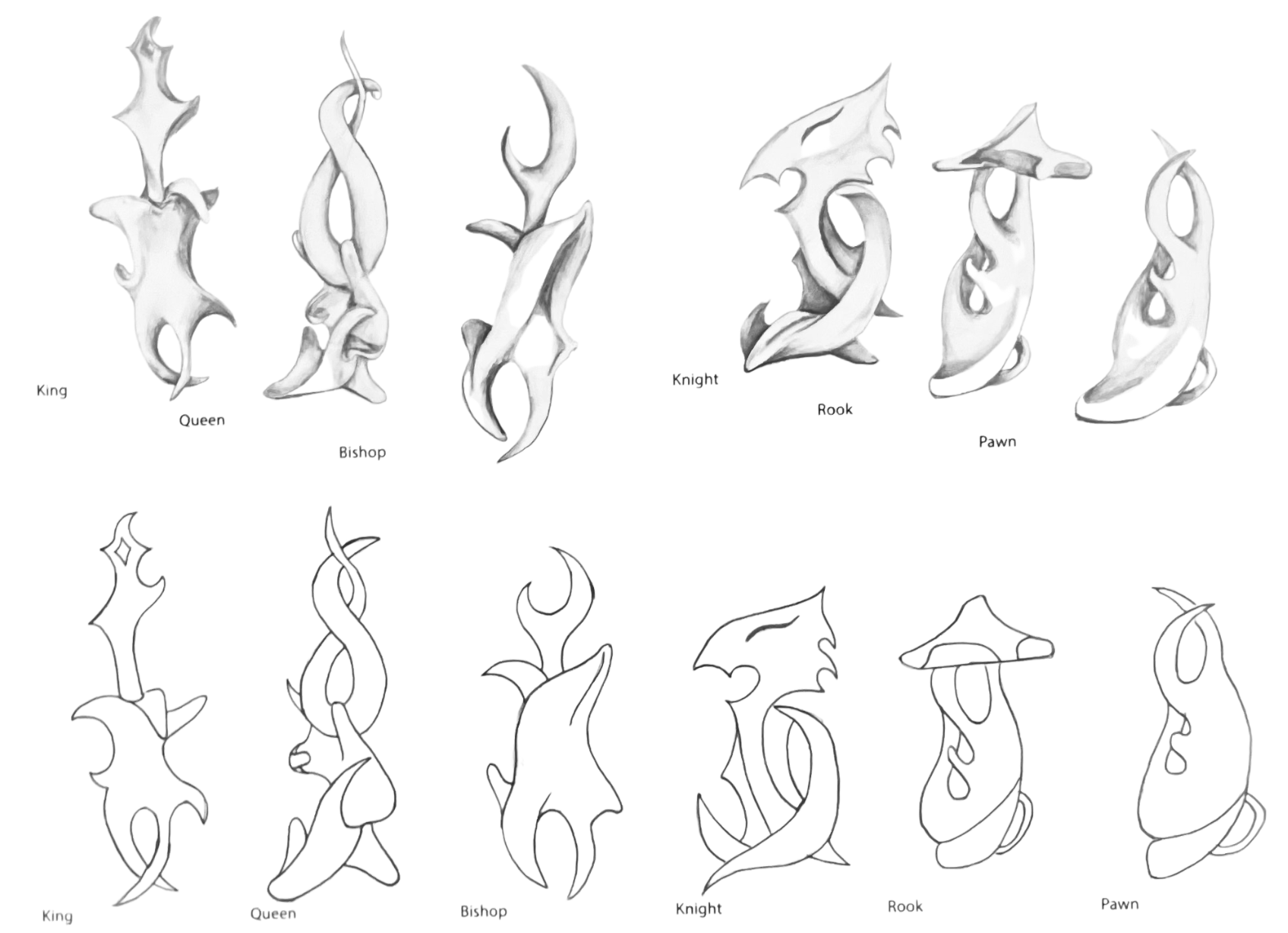

—Thumbnail Sketches

—Prototyping

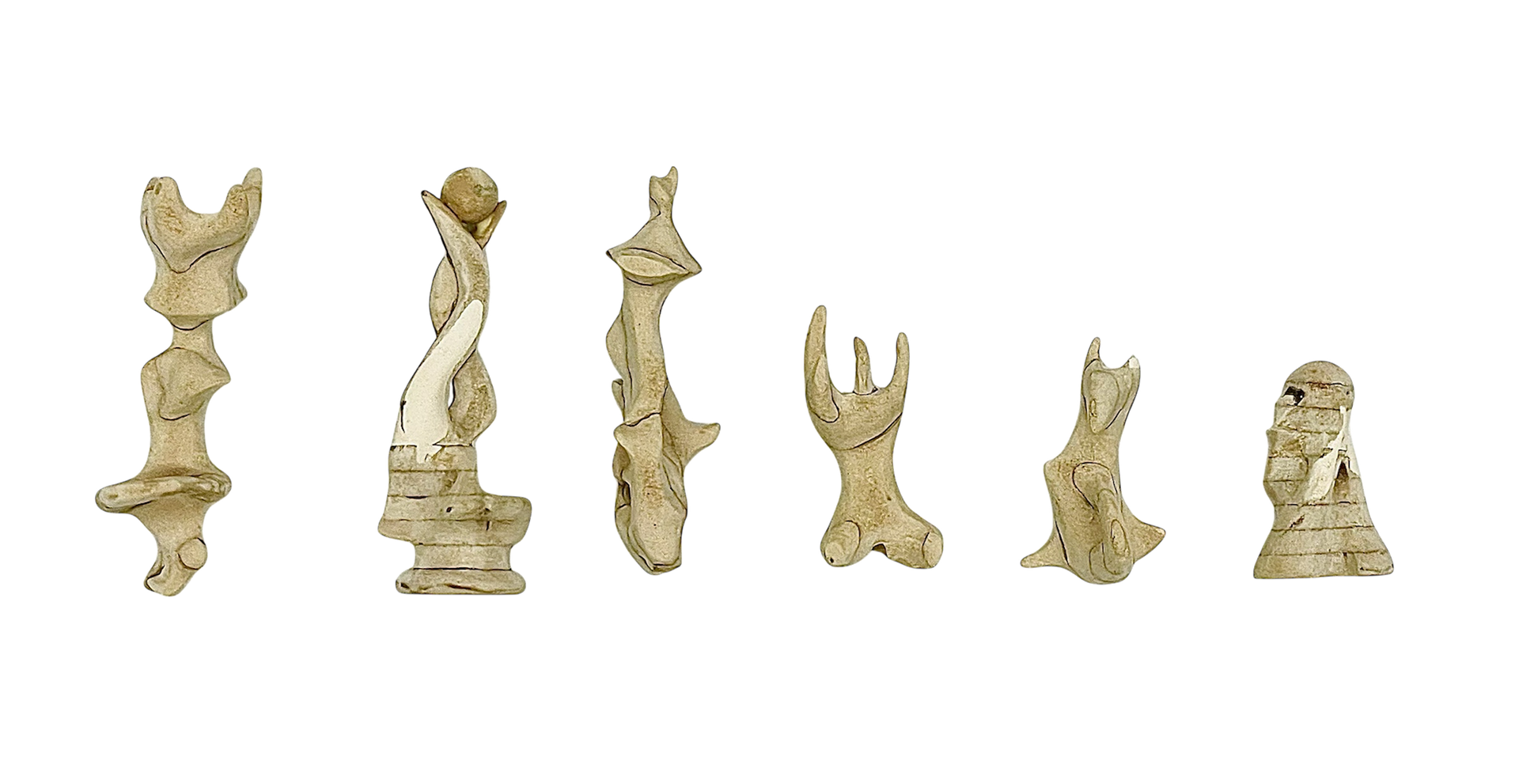

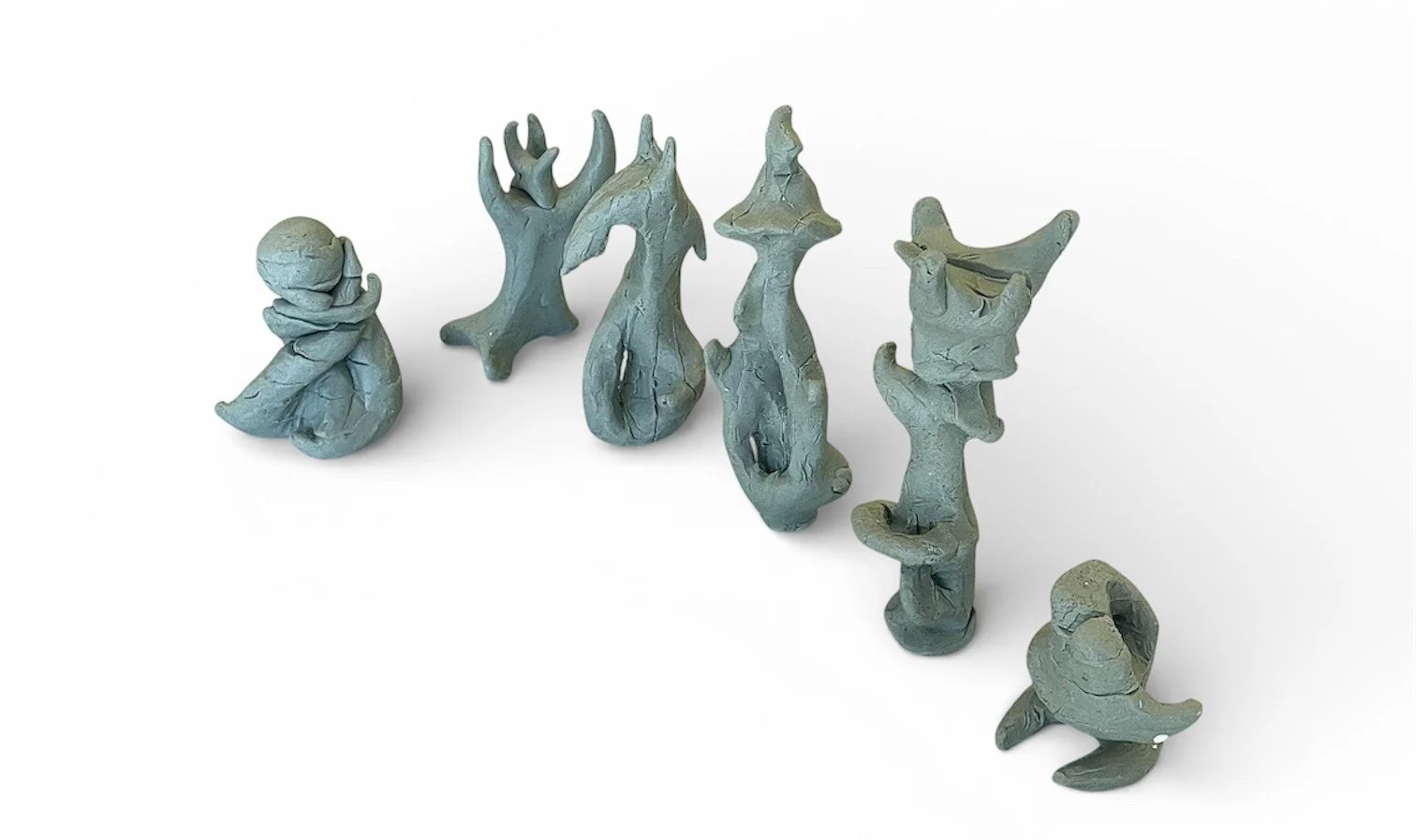

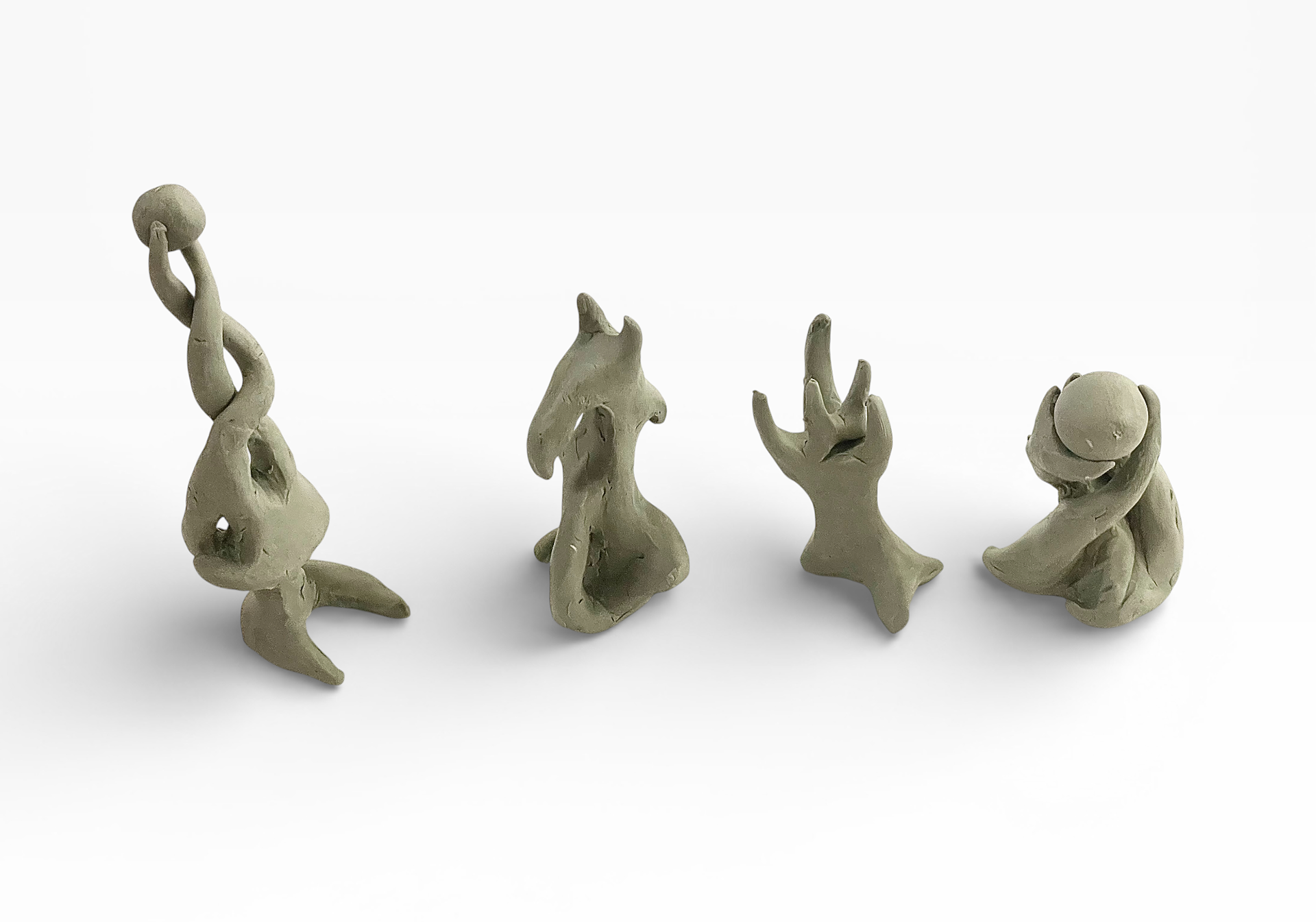

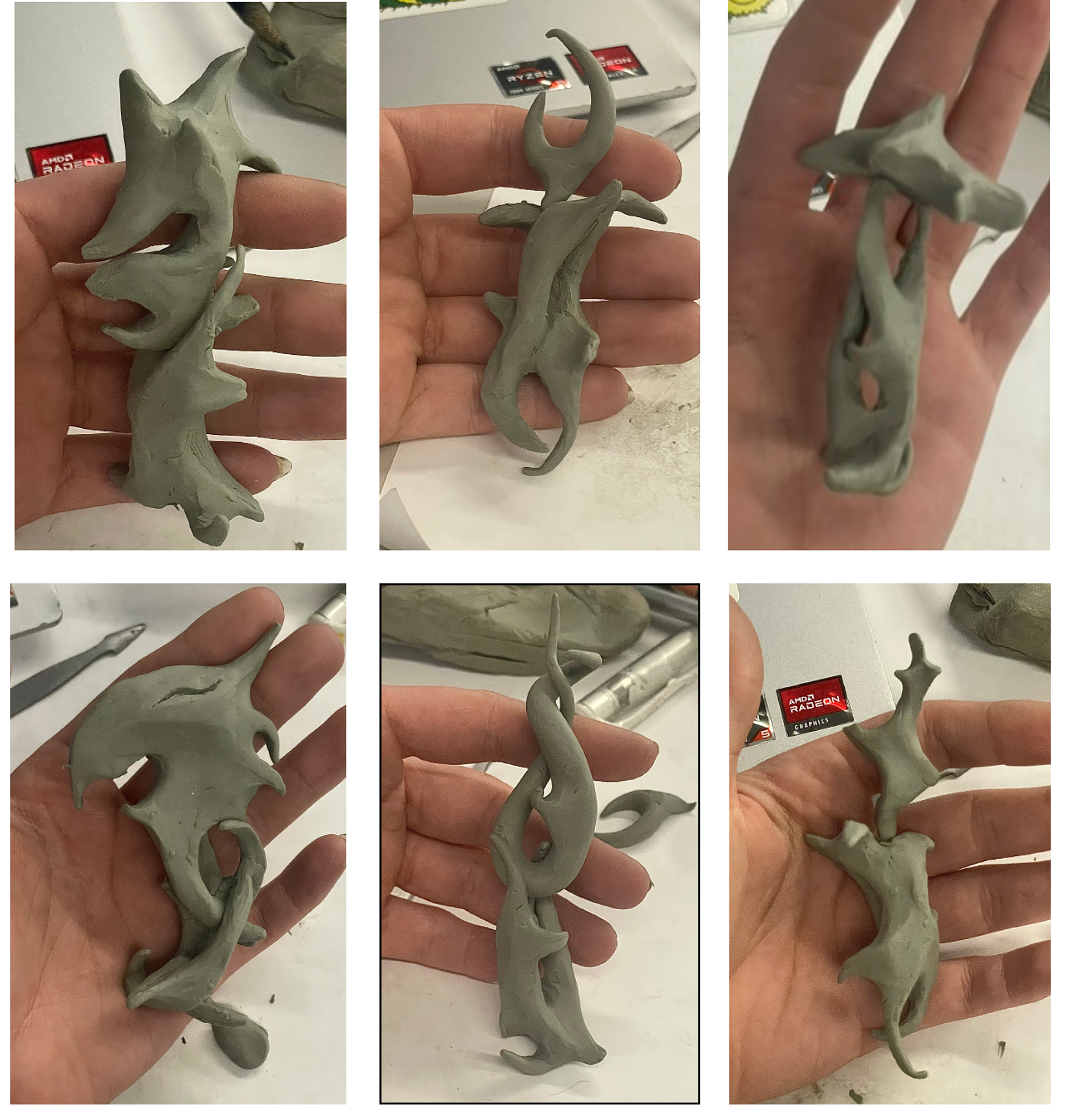

Hand molded sulfur-based clay into desired form

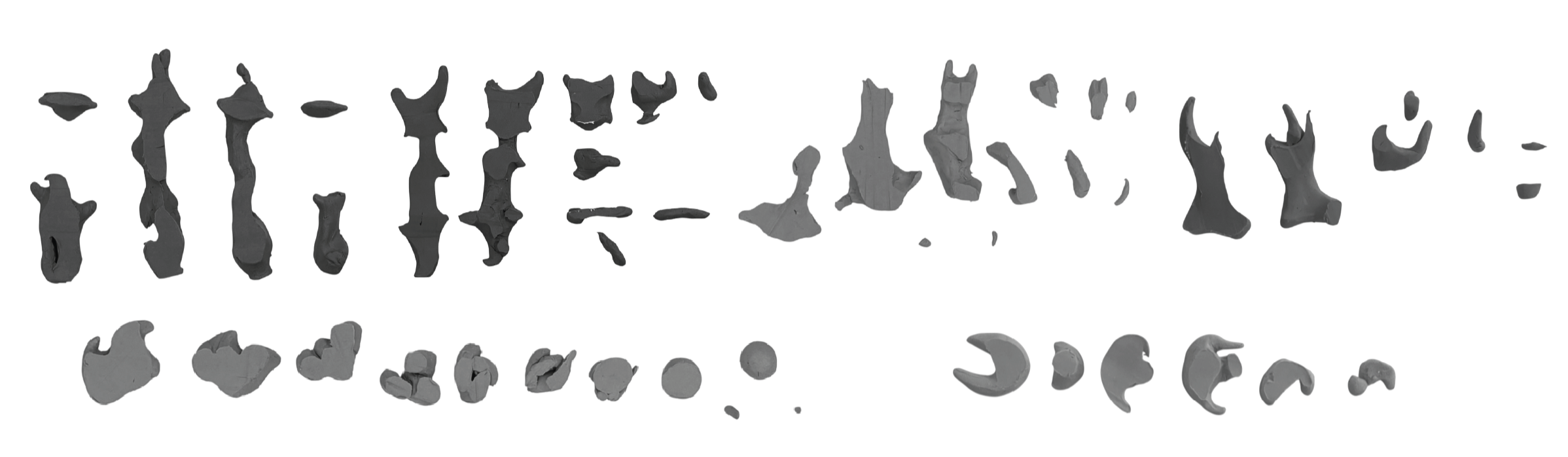

—Clay Cross Sections

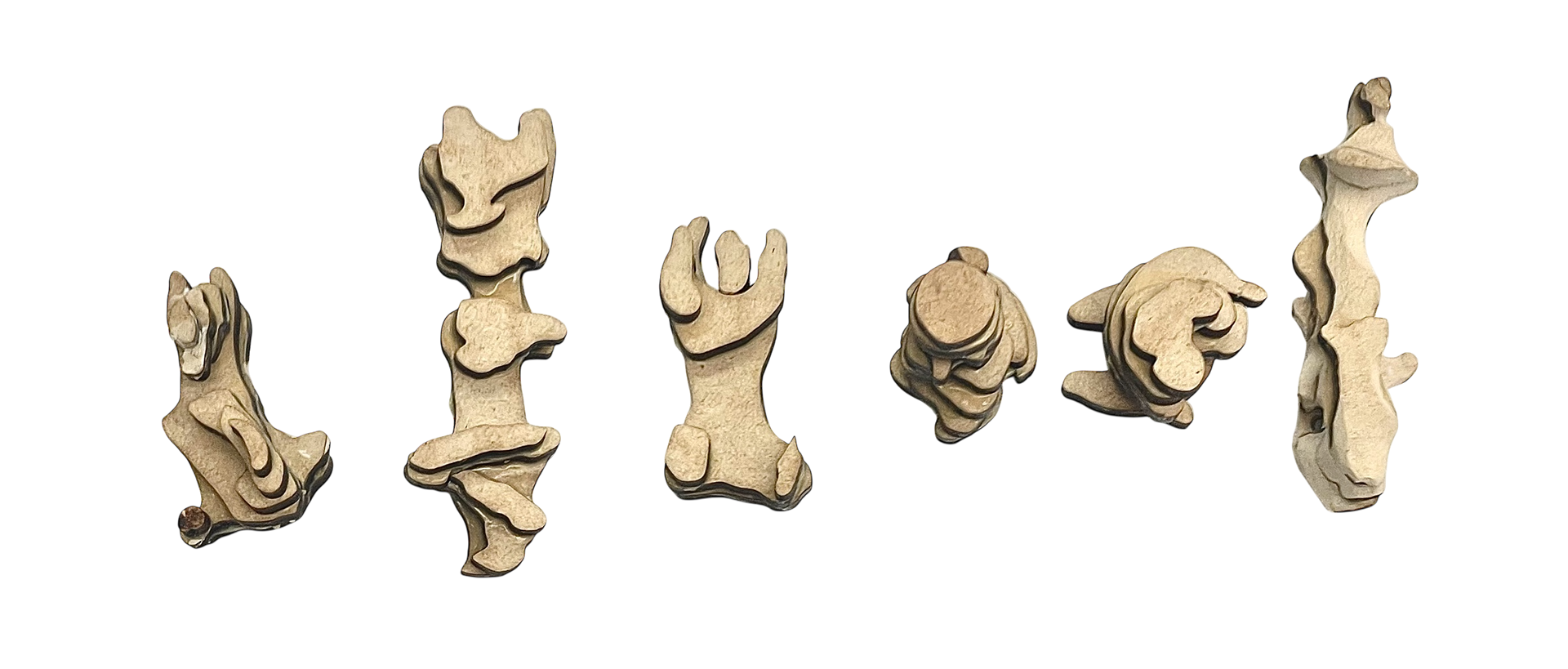

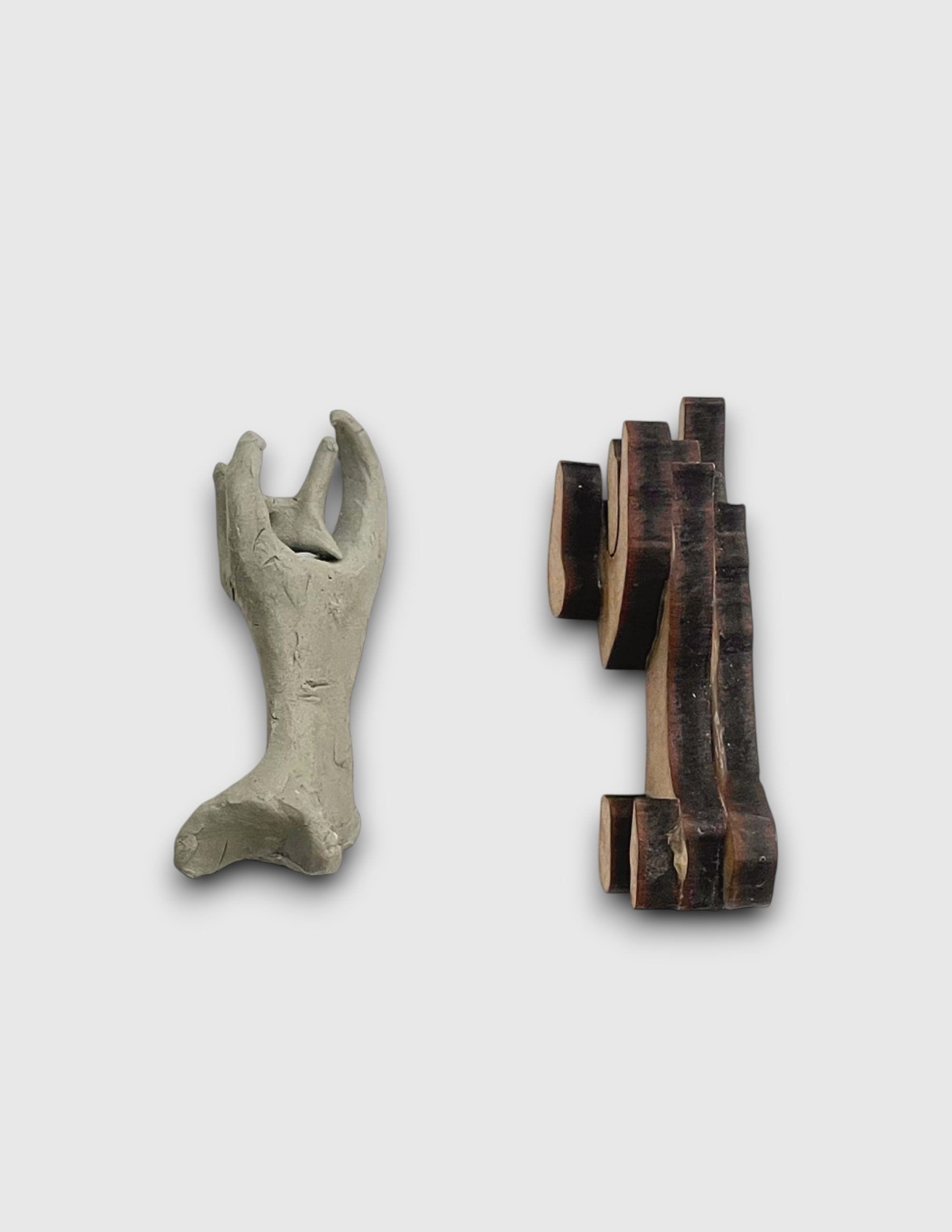

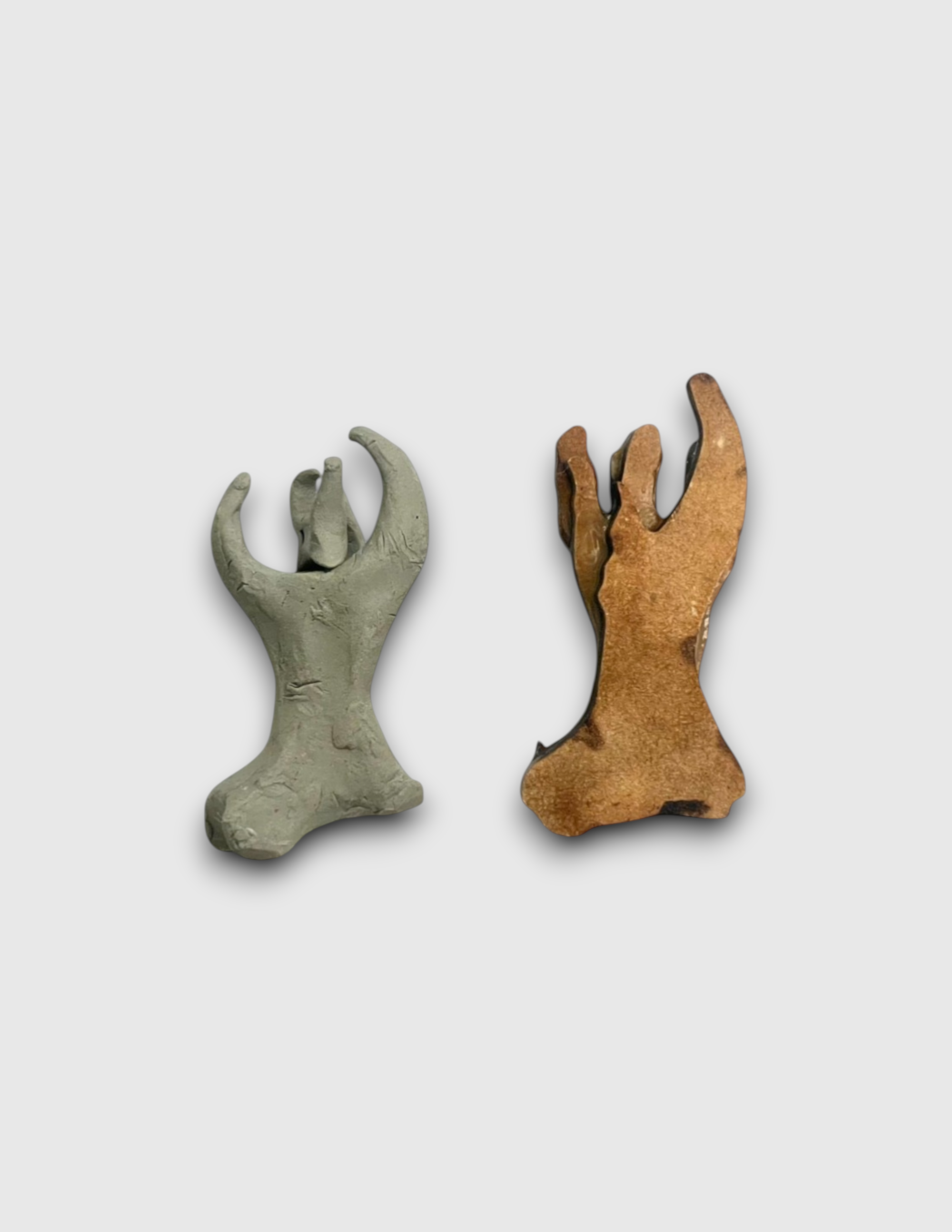

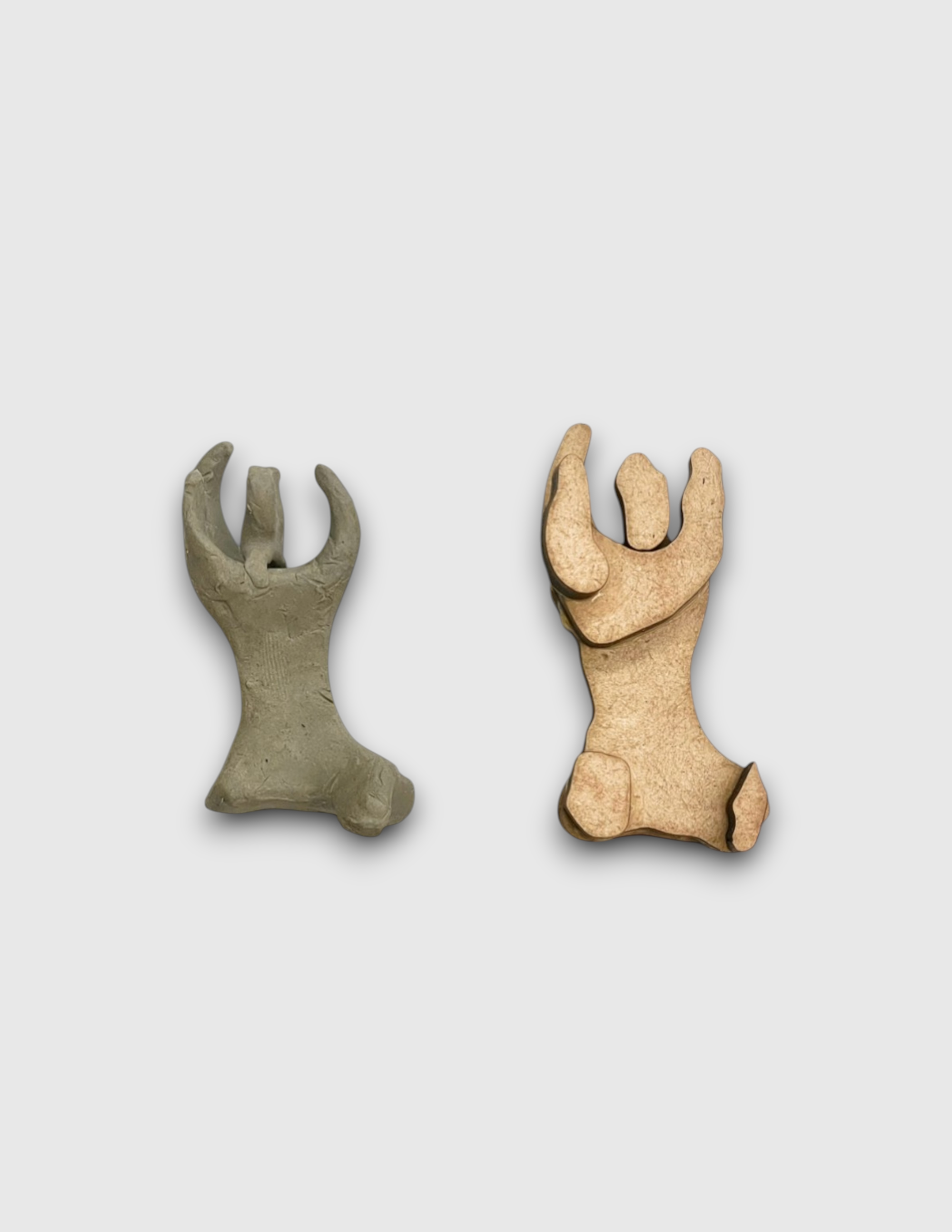

Sliced each clay model into 0.5-inch cross sections and laid out each slice onto paper. Then photographed

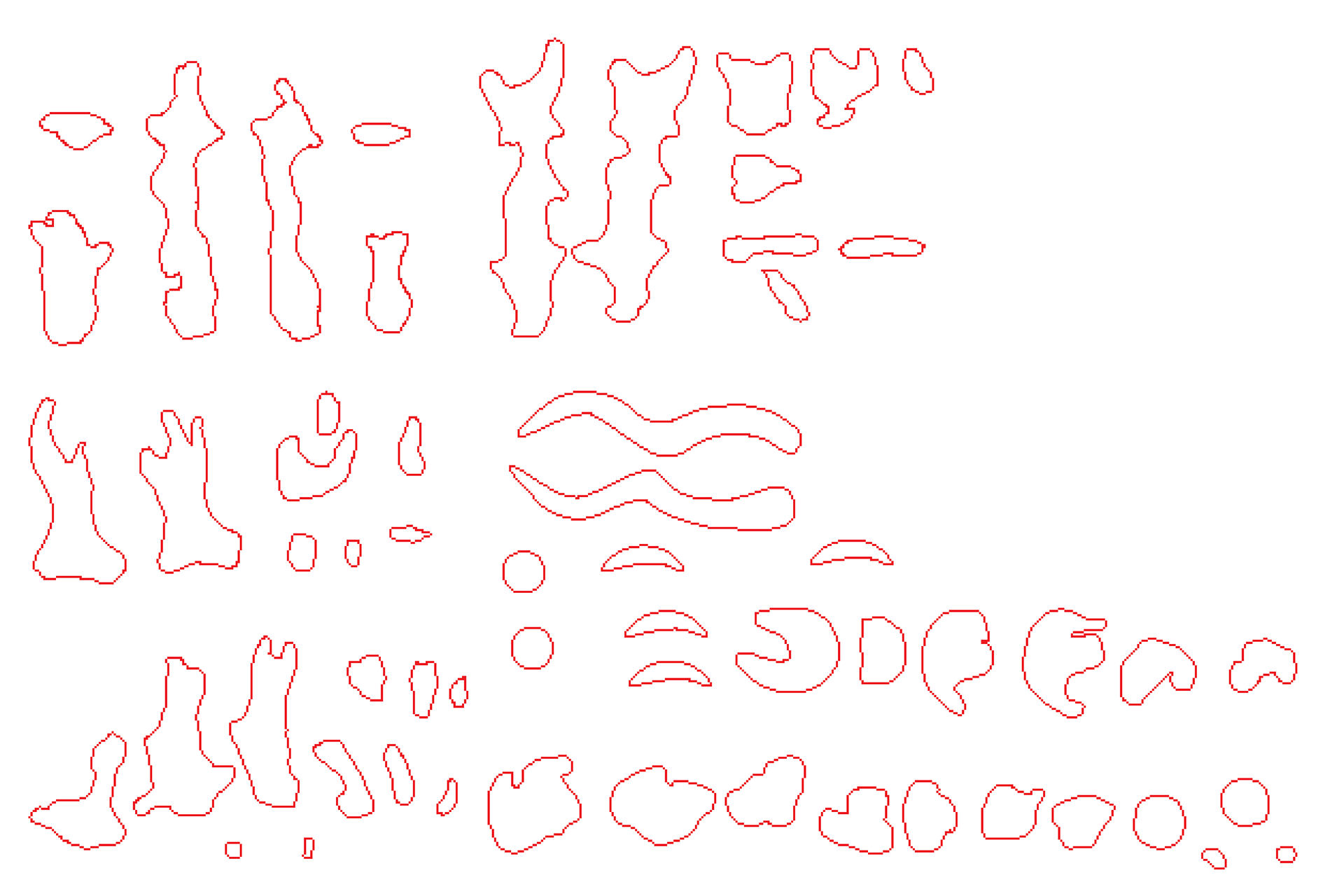

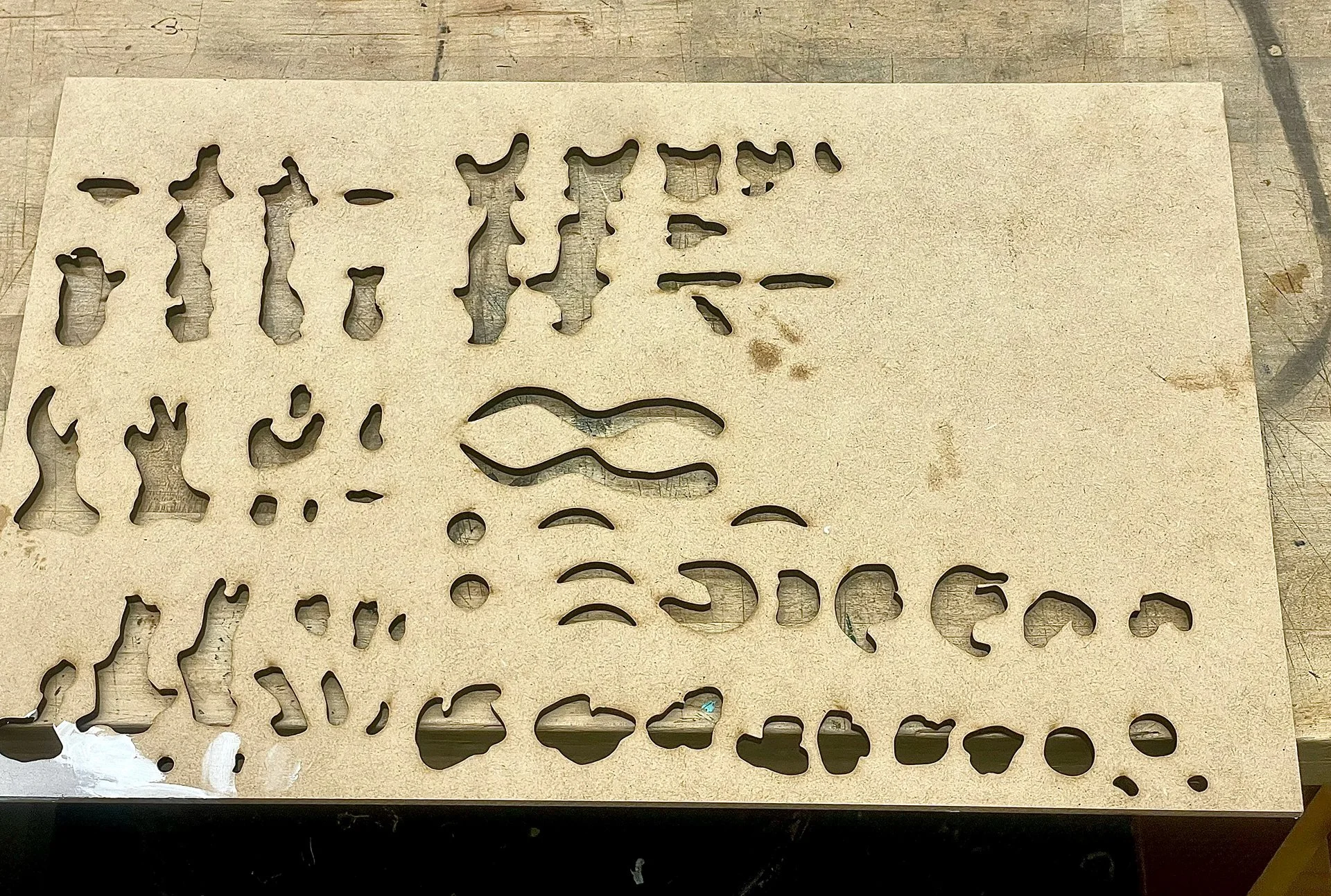

Traced the laid out cross sections in Adobe Illustrator, and laser cut onto .5-inch MDF board

—Final assembly

Traced the laid out cross sections in Adobe Illustrator, & laser cut onto .5-inch MDF board

Sanded and Refined

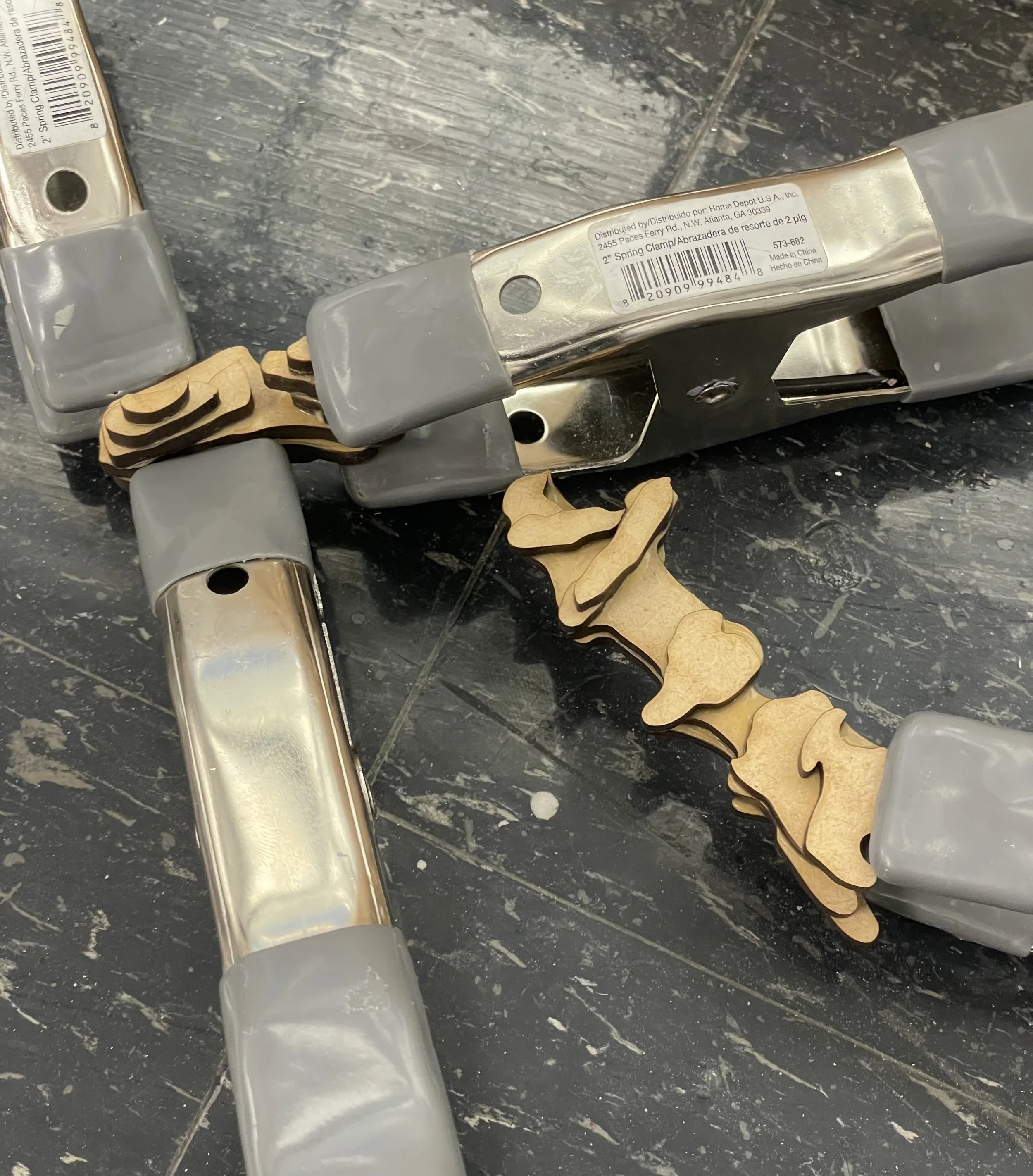

Glued and Clamped

—Base Mold Making

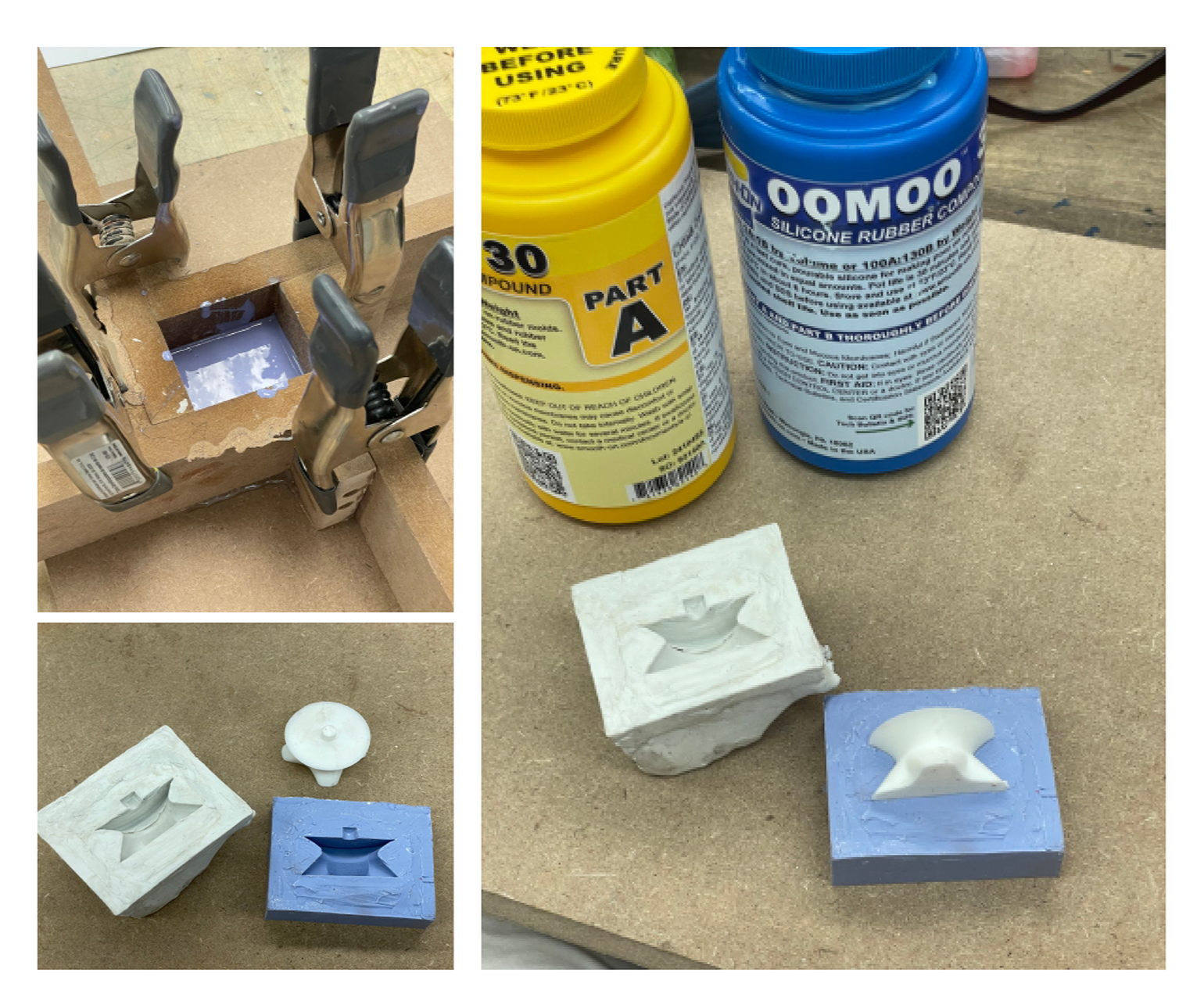

3D printed base piece into a two-part mold. Then used two-part resin to cast 6 bases for chess pieces

—Final Assembly

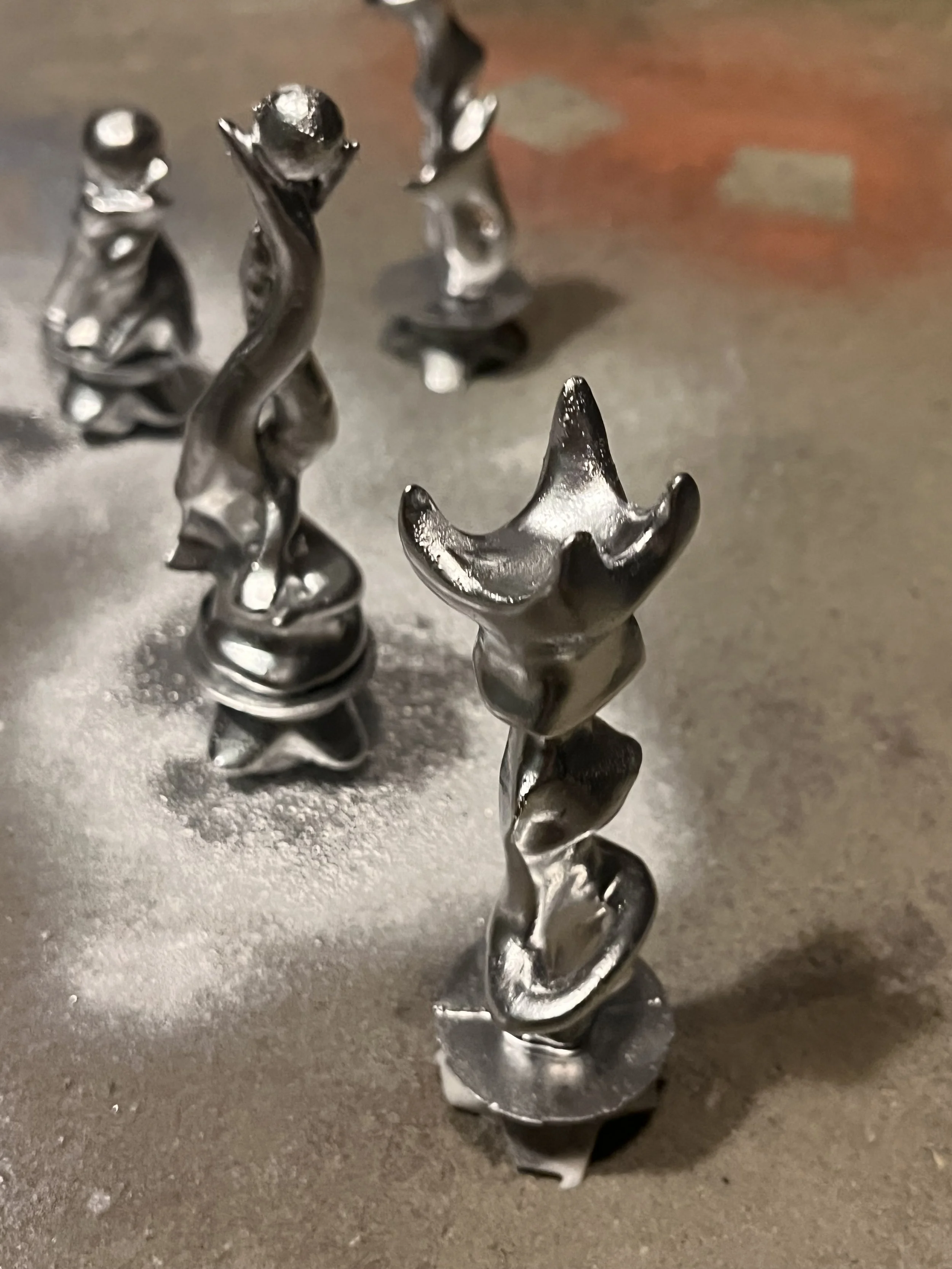

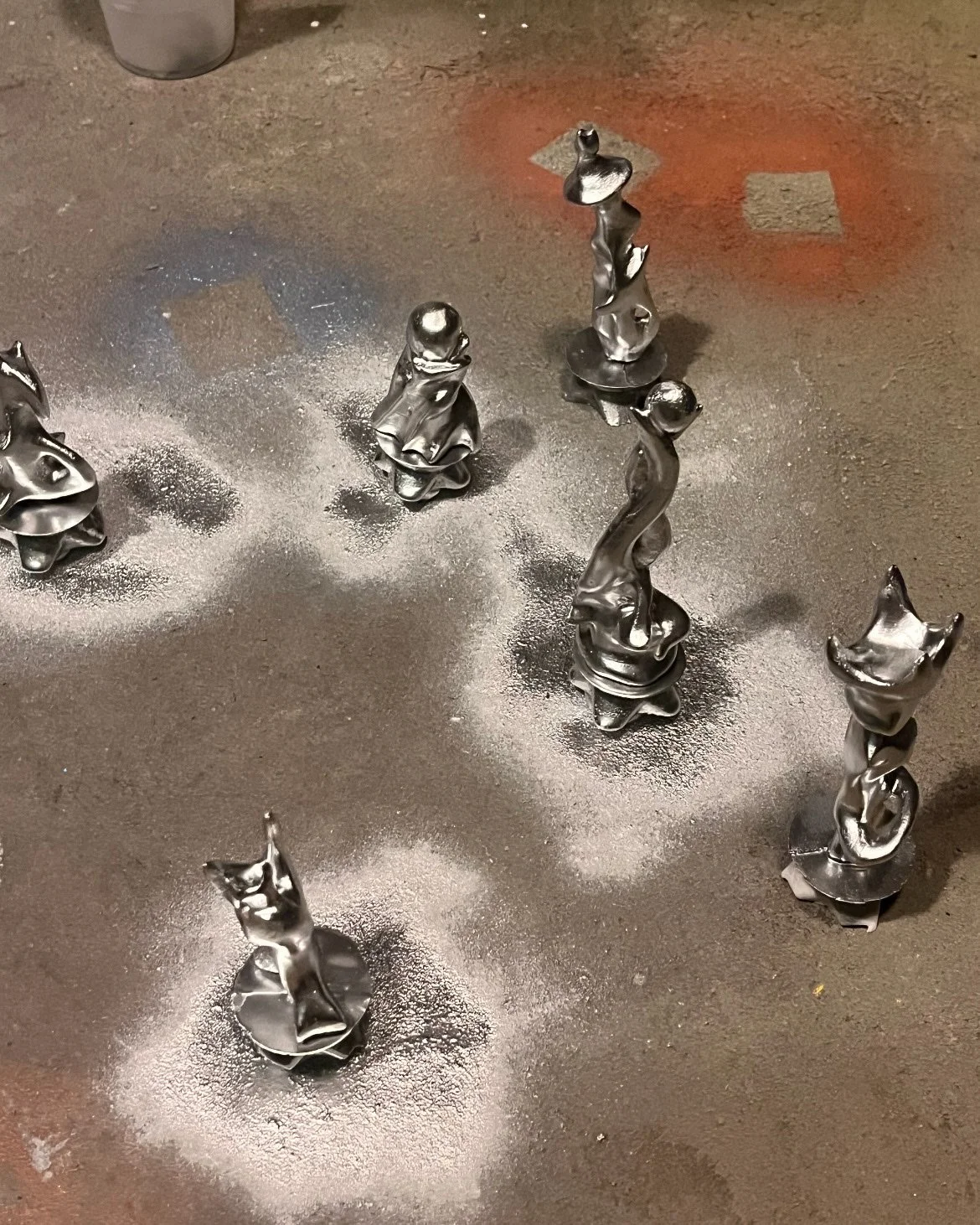

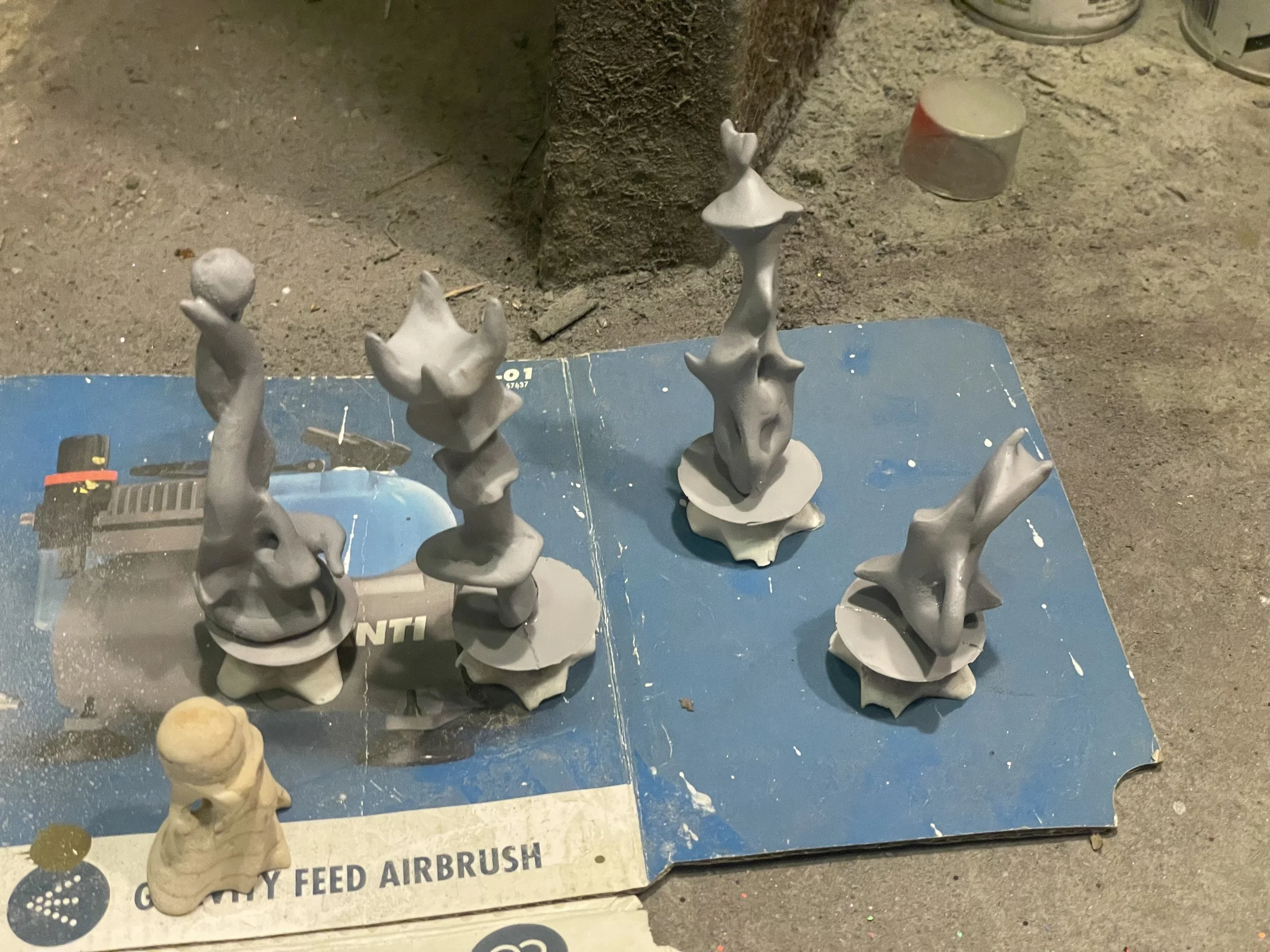

First used a sealant Primer, Then two coats of Metallic spray paint

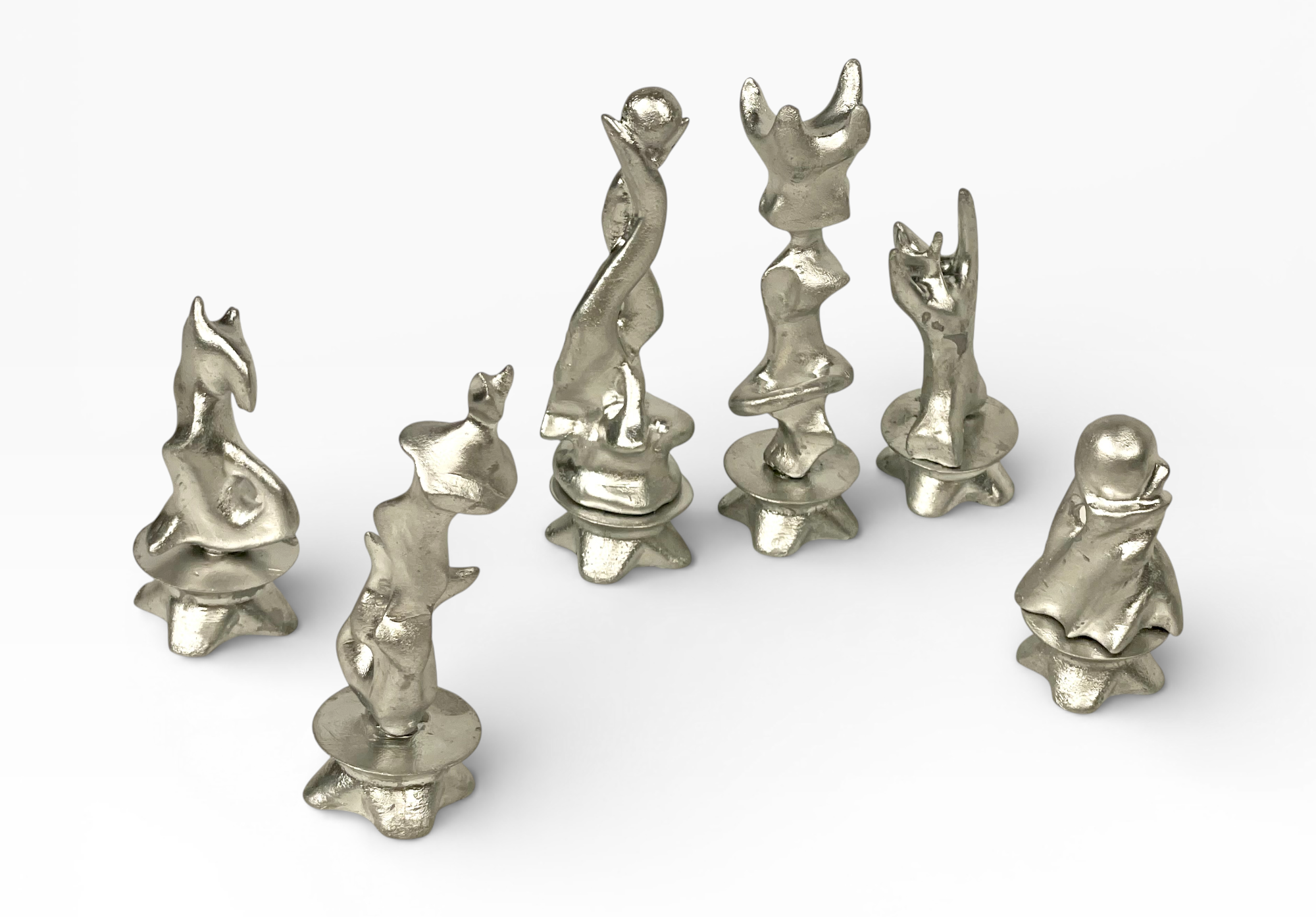

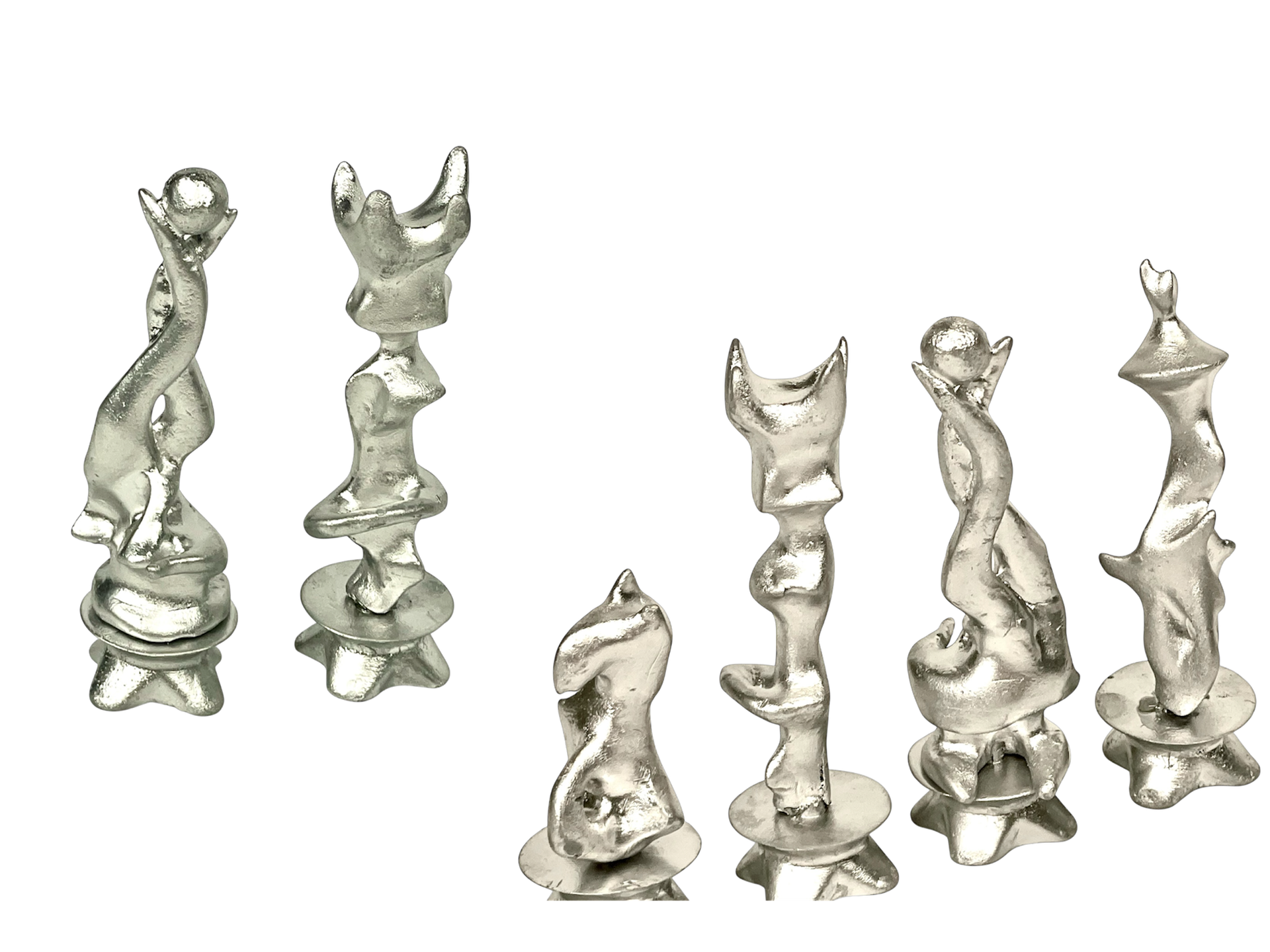

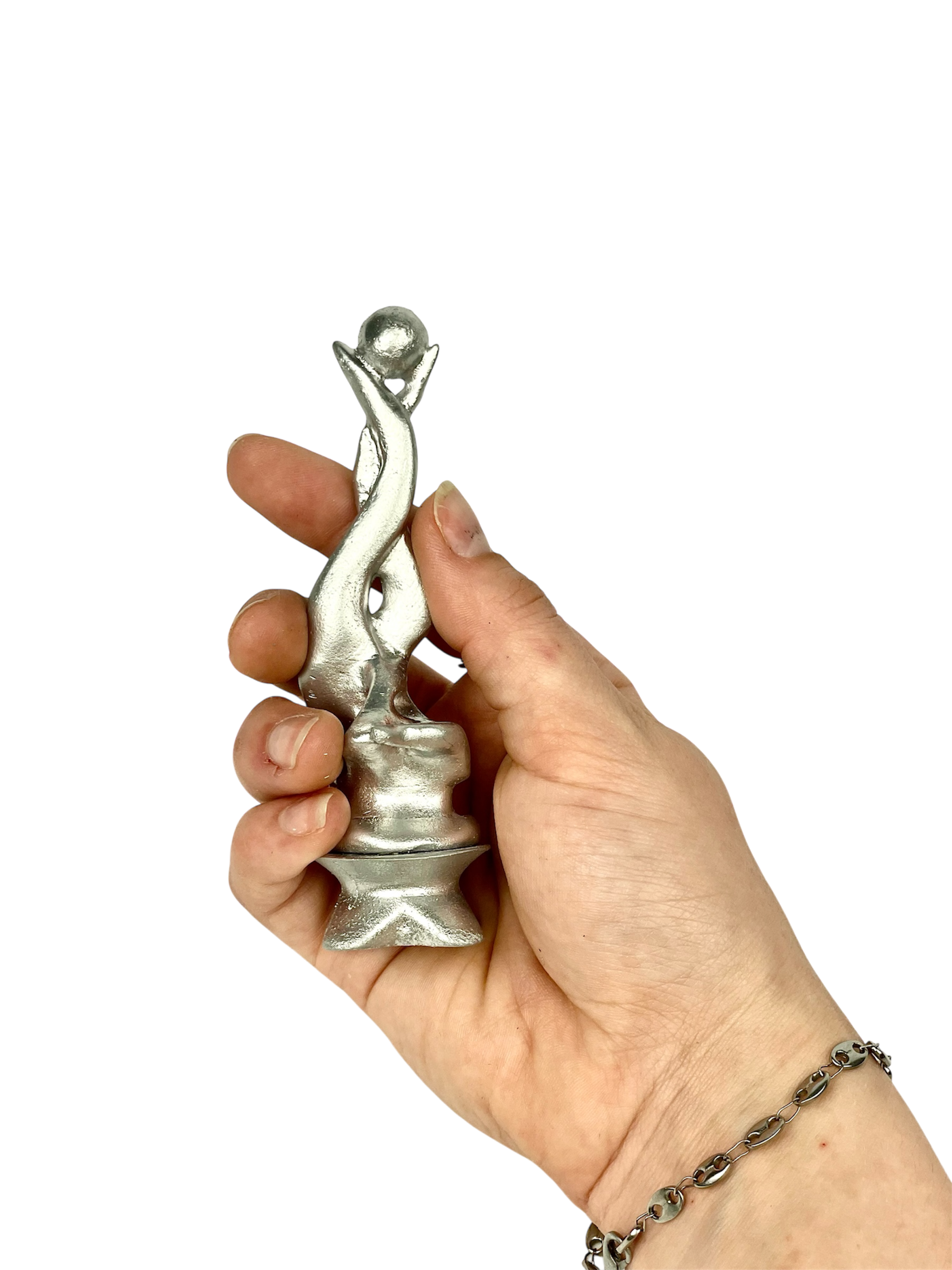

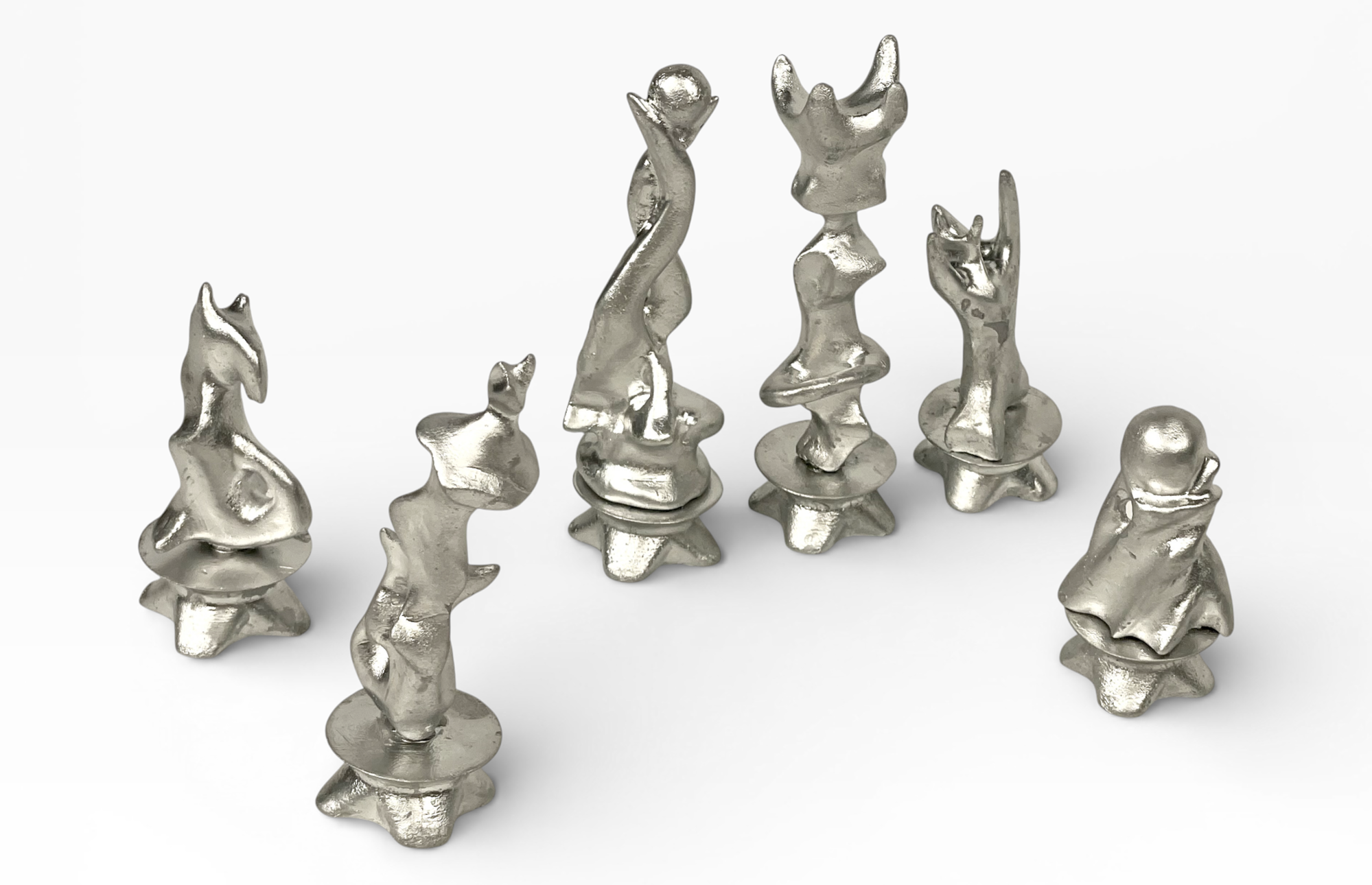

—Photographed Final—
